Cisco SPA – Configuring your phone
Quick Guide to Cisco SPA
Typical of any Cisco product there are a lot of moving pieces to the SPA family of phones, but the good news is once you’ve accessed the phone via its web UI following this guide they’re actually very simple to configure.
Cisco SPA Web UI

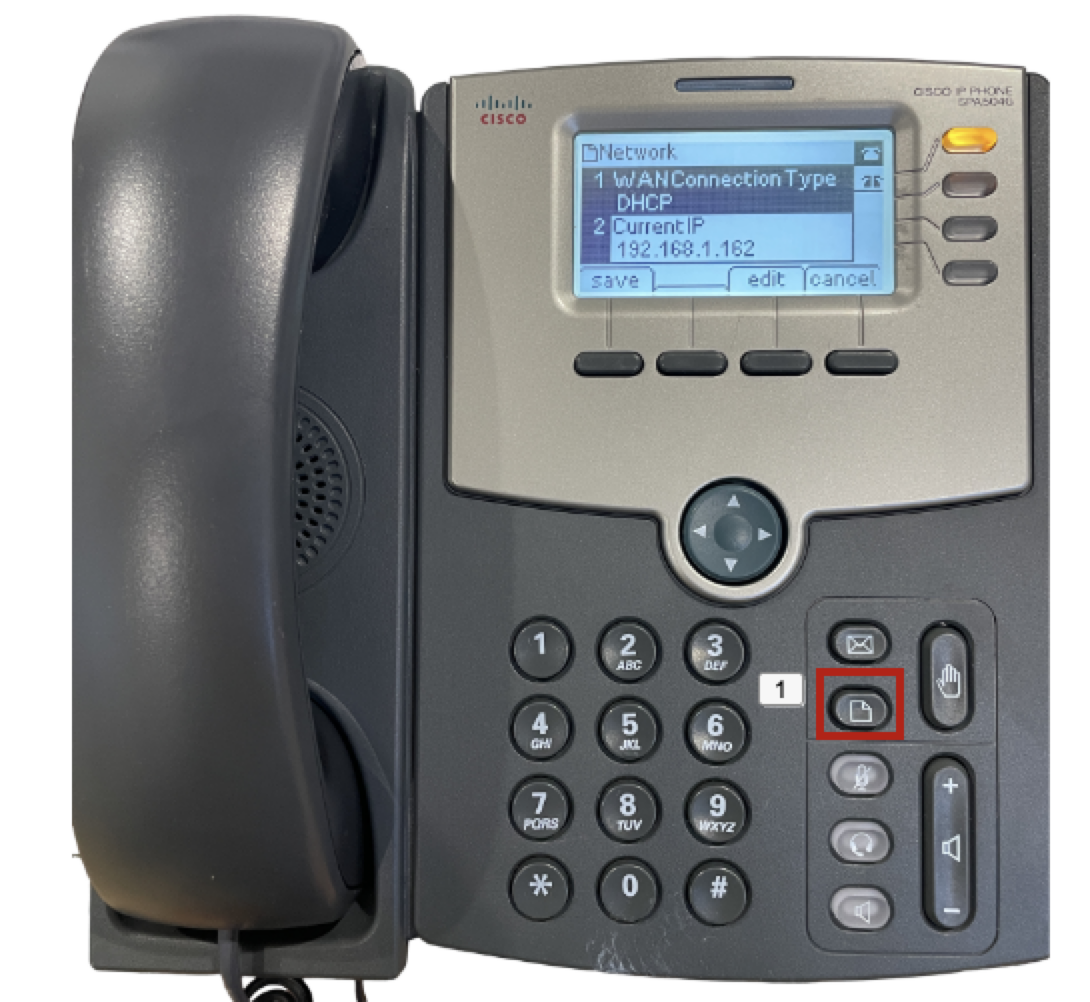

Retrieve the phones IP address > select the Settings button (page icon)
SPA504 select Settings | Network (9) >> Current IP.
SPA 525 select Settings | Status (10) | Network Status (2) >>IP Address .

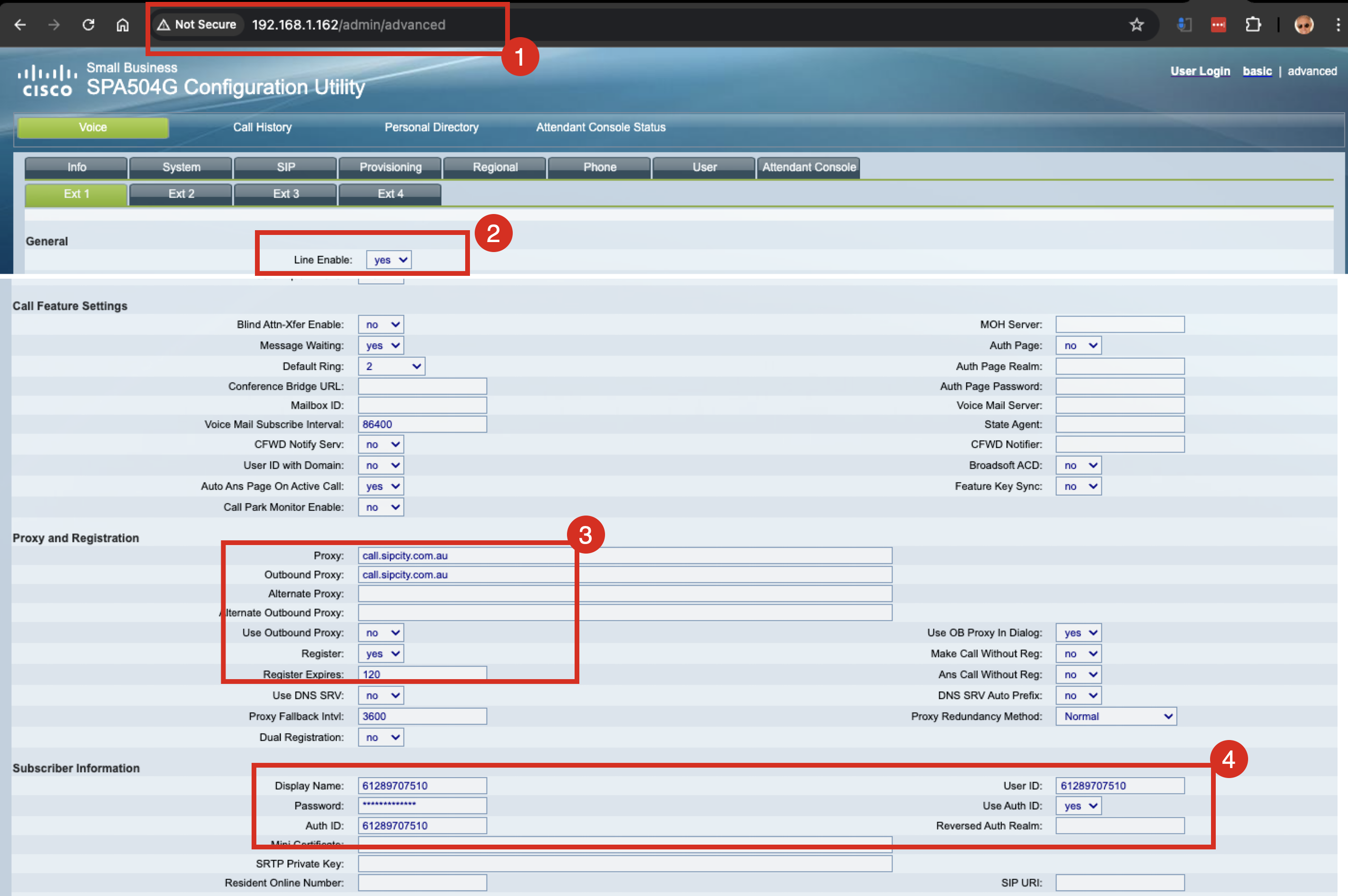

Advanced settings: type admin/advanced after your IP address (eg 192.168.1.1/admin/advanced) to access admin mode.
Ext tabs
All the main settings required to configure the Cisco SPA’s are accessed within the Ext tabs. Complete:
Proxy and Registration
Subscriber information
Reg without
LineEnable: Yes
Additional Extensions
If you are not registering disable 4. above on Ext2, Ext3, Ext4.
Time Zones
Type IP into browser followed by /admin/advanced (eg 192.168.36.172/admin/advanced)
System | Optional Network Configuration | Primary NTP >> time.google.com
Daylight Saving Time rules
Type IP into browser followed by /admin/advanced (eg 192.168.36.172/admin/advanced)
Regional | Miscellaneous >>Daylight Saving Time Rule: start=10/30/-7/2:0:0;end=4/1/7/2:0:0; save=1
Set time zone rule
