Trace - Knowledgebase / Troubleshooting - SIPcity Help Centre


Authors list

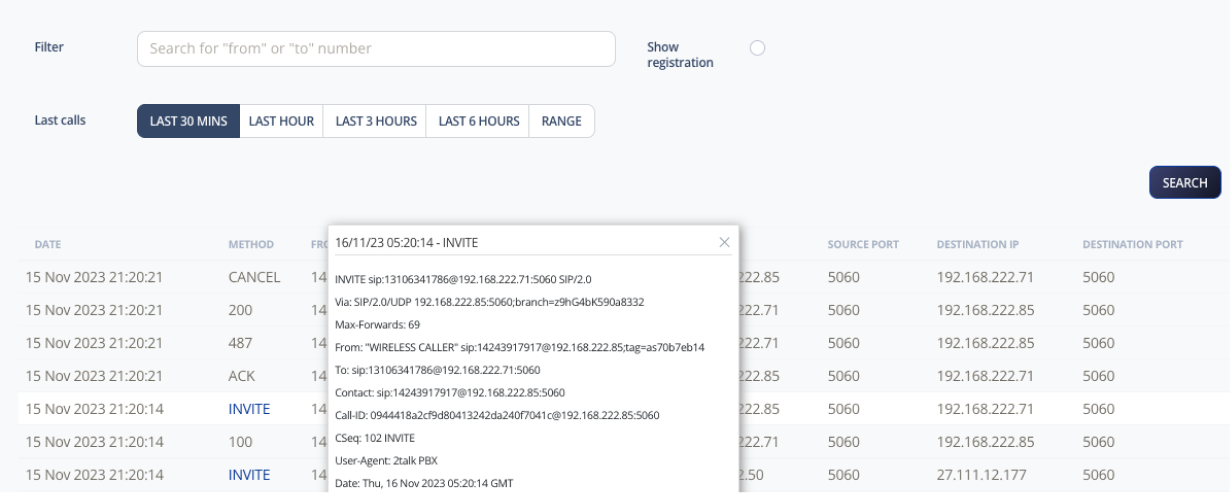

Trace is a lightweight extension of our Homer SIP capture, a diagnostic tool used to both record and debug SIP and RTCP Media messages exchanged between endpoints on our network.

While the Trace tool does not contain the details of the Homer Application, it is a useful application for engineers to identify basic INVITE requests.

How use Trace

  1. Log into your account

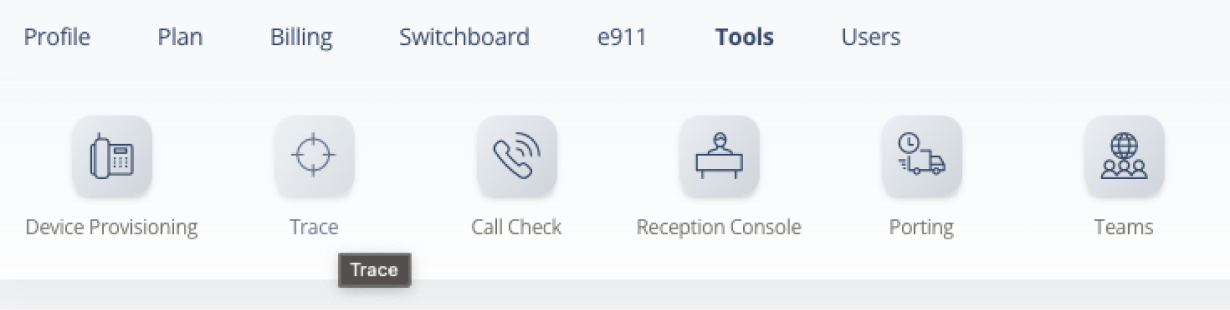

  2. Select Tools > Trace.

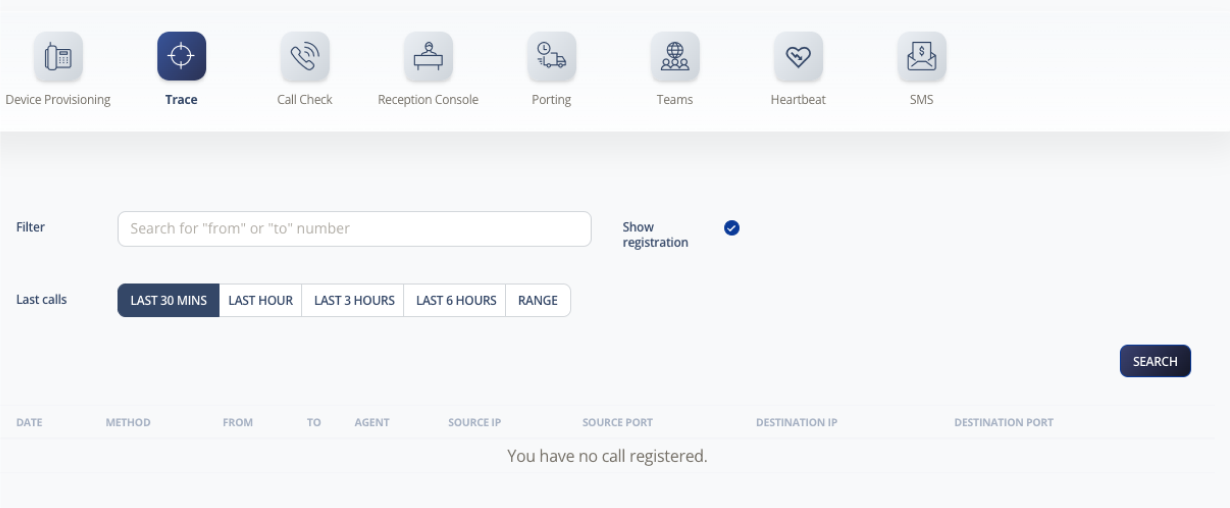

  3. Select Preferences

Trace Registration

To both receive and make phone calls the handset will normally be registered to our network. This useful Registration test tool verifies the last four hours of registration attempts, including any failures. The test also identifies the UserAgent, which is helpful in diagnosing a failure to a particular phone.
