Manually Provision a Yealink phone

Access Yealink Phone’s Web UI

1. Phone’s web UI: to access the phone’s web UI press the OK button (on the right of the keypad) to retrieve the phone’s IP address.

2. Enter the IP address on your browser (eg 192.168.1.xx).

3. Username and Password: admin/admin.

4. Click Confirm.

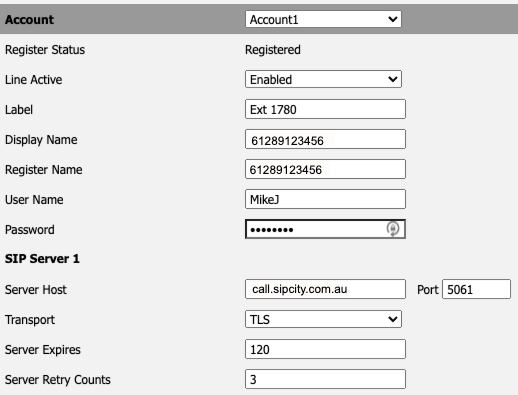

Account Tab

1. Select the Account tab. (or another unused account if Account 1 is in use).

2. Account Active: Enable

3. Label: Your Name

4. Display Name: Displays on your telephone phone screen when idle.

5. Register Name: Full DID eg 61289123456

6. User Name: Full DID eg 6189123456

7. Password: account password or the restricted line password – can be found on your account’s switchboard.

8. SIP Server: call.sipcity.com.au

9. Port: 5061

10. Transport: TLS

11. Confirm: to Save
