Polycom Manual Configuration
Manual configuration
You can quickly configure a handset by supplying four simple pieces of information in 2.1 with all other steps being optional.
Retrieve the handset IP address: Home (Button) > Settings > 4. Status > 2. Network > 1. TPC/IP.
Web UI: Enter IP address (eg 192.168.1.11) into your browser.
Settings > Lines (select Line).

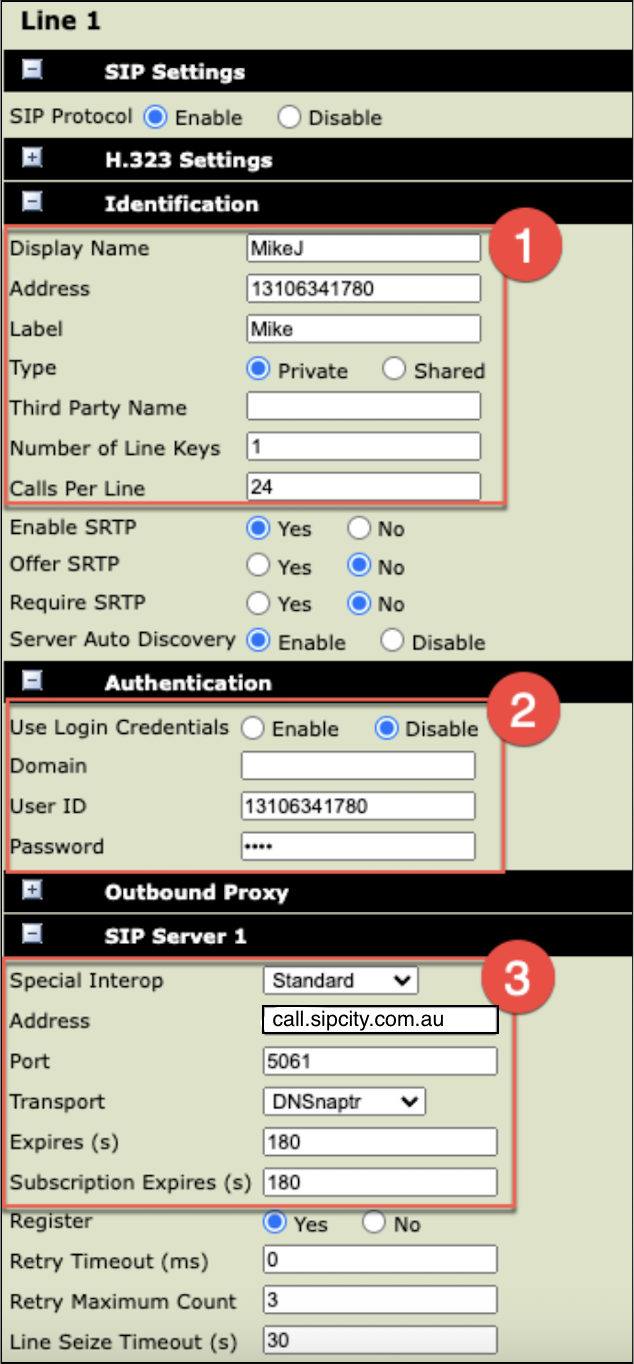

Follow instructions from the image below
SIP Protocol: Enable.
Identification: Display Name, Address (must be full DID), Label (usually same as Display Name).
Authentication: User ID (full DID), Phone’s password from your switchboard, Disable Credentials.
SIP Server 1: plus.2talk.com – Expires 180
